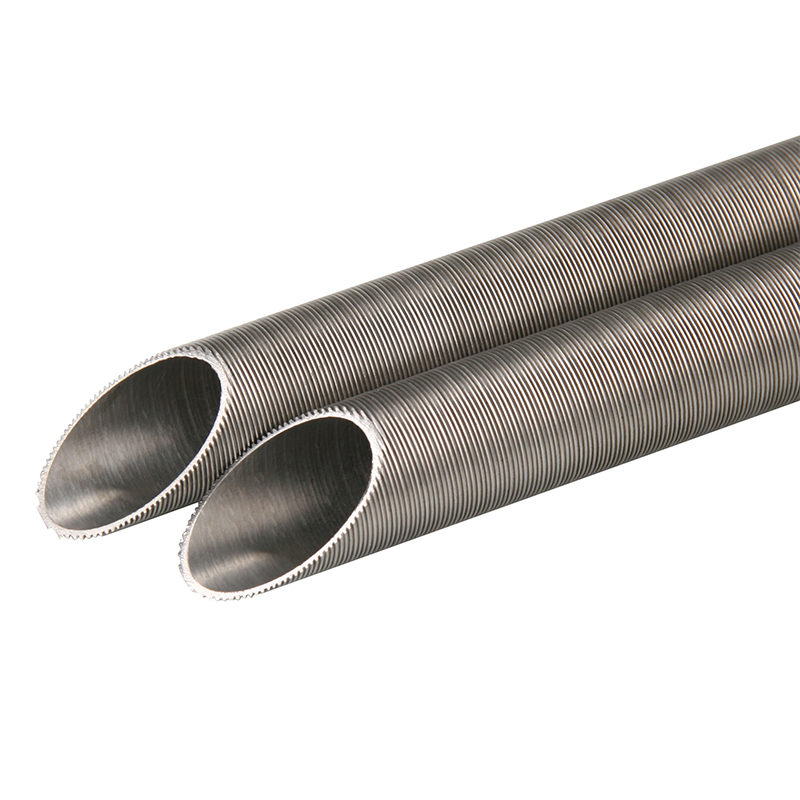

Titanium Low Fin Tube

Product Description

Titanium Low Fin Tube (Integral) is a high-performance enhanced heat transfer tube manufactured through a precision extrusion process. During production, the outer surface of the base tube is mechanically deformed to form uniform low fins, ensuring 100% metal-to-metal bonding without welding or filler materials.

Compared with plain tubes, low fin tubes significantly increase the external heat transfer area while maintaining the same base tube diameter. This allows seamless integration into existing shell-and-tube heat exchangers without requiring modification of tube sheets, baffles, or piping systems.

Manufactured in compliance with ASTM B891, titanium low fin tubes are especially suitable for corrosive environments such as seawater cooling systems, chemical processing plants, and offshore platforms.

Product Specification Parameters

General Technical Parameters

Parameter	Specification
Material	Titanium (Gr.1, Gr.2), Titanium Alloys
Standard	ASTM B891
Tube Type	Integral Low Fin (Extruded)
Base Tube OD	15.88 mm / 19.05 mm / 25.40 mm
Tube Length	Up to 12,000 mm (customizable)
Fin Density	28 / 30 / 36 FPI
Fin Height	0.66 mm – 0.889 mm
Fin Thickness	0.279 mm – 0.305 mm
Surface Area Increase	2.5 – 3 times vs. plain tube
Area Ratio (Ao/Ai)	2.95 – 3.35 (typical)
Inspection Methods	UT, ET, Hydrostatic Test
Certification	ISO9001, ISO14001, ISO45001, PED

Representative Dimension Data

OD (mm)	Wall Thickness (mm)	Fin Height (mm)	Root OD (mm)	ID (mm)	Ao/Ai
15.88	1.473	0.889	14.097	12.319	3.252
19.05	1.473	0.889	17.272	15.494	3.131
25.40	1.473	0.889	24.622	21.844	3.004

Optional Structure

Type	Feature
Smooth Bore	Standard design for general heat exchange
Internal Rib	Enhanced internal turbulence, improved heat transfer

Product Features

Integral Extrusion Technology
Fins are formed directly from the base tube, ensuring no delamination risk.
Standard Compatibility
Same outer diameter as plain tubes, suitable for standard tube sheets and baffles.
High Precision Geometry
Fin height tolerance ±0.1 mm, ensuring consistent thermal performance.
Wide Fin Configurations
Available in 28, 30, and 36 FPI to meet different heat transfer requirements.
Corrosion Resistance
Titanium material provides excellent resistance to seawater corrosion and erosion.

Product Advantages

1. Significant Heat Transfer Enhancement

External surface area increased by 2.5–3 times
Achieves up to 3.3 Ao/Ai ratio, improving efficiency without increasing exchanger size

2. Lower Capital Investment

Reduced number of tubes required for the same duty
Smaller shell size and reduced material consumption

3. Ideal for Retrofit Projects

Direct replacement of plain tubes
No need to redesign:

Shell
Tube sheets
Piping systems

4. Space & Weight Savings

Compact heat exchanger design
Critical for:

Offshore platforms
High-rise process systems

5. Superior Corrosion Resistance

Titanium is highly resistant to:

Seawater corrosion
Chloride environments

Ideal for coastal refineries and marine applications

6. Reduced Lifecycle Cost

Longer service life (often >20 years in seawater conditions)
Lower maintenance and downtime

Applications

Titanium low fin tubes are widely used in:

Power Generation Plants
Oil & Petrochemical Industry
HVAC & Refrigeration Systems
Seawater Cooling Systems
Chemical Processing Equipment

Typical Use Cases

Shell-side heat transfer limitation
High-cost material optimization
Heat exchanger debottlenecking
Retrofit and performance upgrade projects
